Aluminium slab heating before rolling
Kanthal® air heating cassettes are designed for maintenance-free operation
Norsk Hydro is an industrial company based on the use of natural resources, producing energy, materials and food products. The company’s aluminum activities, organized into four divisions, are fully integrated – from raw materials through primary metal production to fabrication, to end products manufactured for complex aluminum applications.
THE CHALLENGE

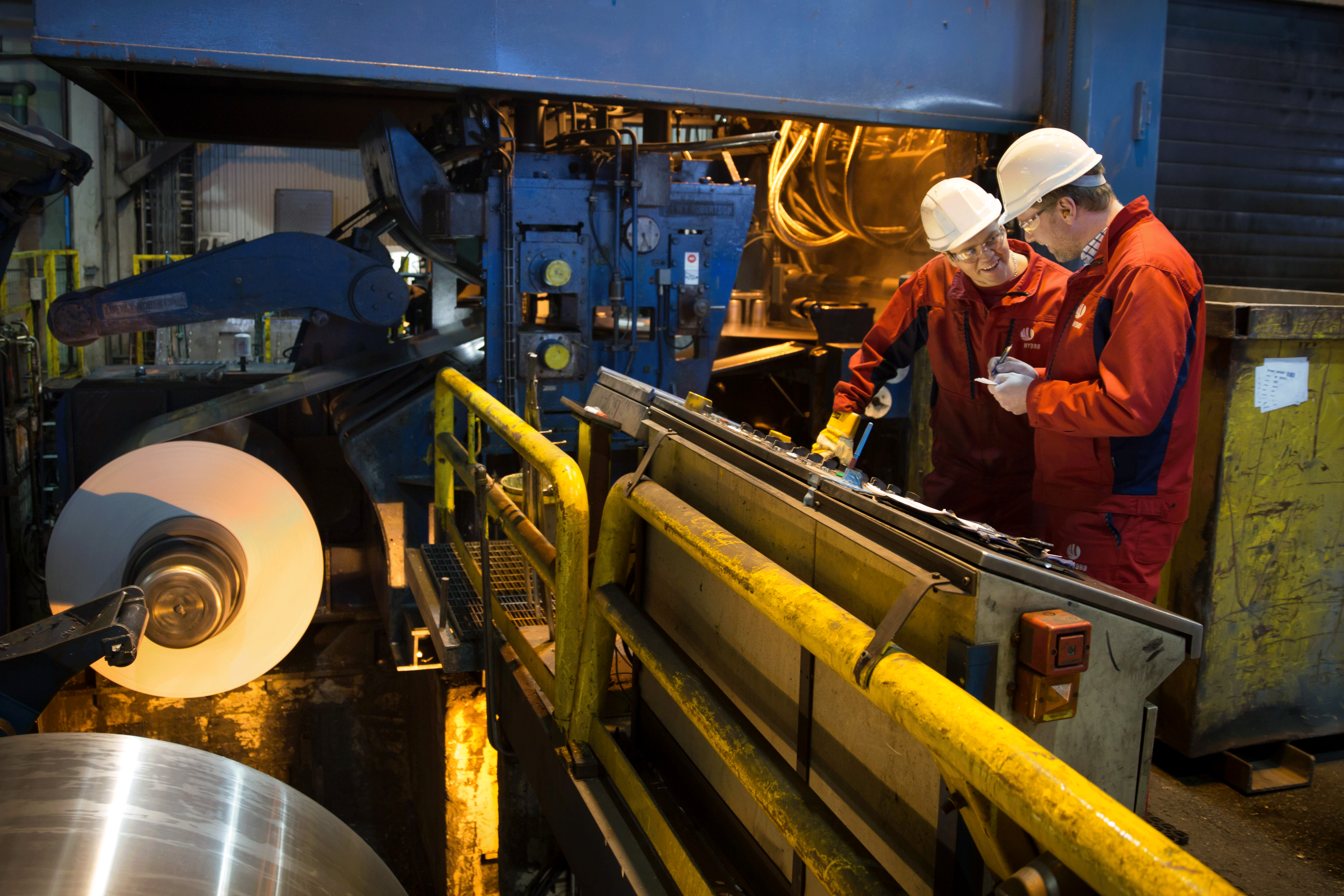

Hydro Aluminium Rolled Products has two rolling mills in Norway and offers a unique combination of recycling-
based, thin strip cast and surface critical special products.
Hydro Aluminium in Holmestrand, Norway, is the center for rolling with its own smelting shop and hot and cold rolling of aluminum slabs down to a thickness of 0.2 mm (0.008 in). The total number of employees is 800 with about 250 in hot rolling.
Heating of 7-ton slabs before rolling
Preheating before hot rolling takes place in an electrically heated pusher type convection furnace originally built by Heurtey Italiana in 1985. The temperature is 590–600°C (1090–1110°F). The 7-ton slabs are produced at the smelting shop at Holmestrand and stored at the furnace. Production is continuous, stopping only for a couple of weeks at summertime for annual maintenance.
THE SOLUTION
Today, there are eight Kanthal® heating cassettes in the furnace, four on each sidewall:
Cassette 1: 840 kW
Cassette 2: 840 kW
Cassette 3: 630 kW
Cassette 4: 420 kW
The total power is 5460 kW, which gives a production rate of about four slabs/hour.
Kanthal® air heating cassettes are built in a modular system with heating elements of the “Porcupine” type with Kanthal AF 2.8 mm (0.11 in) wire. The key feature of the element design is that a very large proportion of its surface is in contact with the air. Heat transfer is therefore effi cient and the turbulence of the air around the element prevents overloading. The elements are supported by ceramic tubes and mounted in stainless steel cassettes. The number of elements per cassette varies from 96 in the 840 kW type, to 48 in the 420 type.
The elements are connected in groups, each rated at 210 kW, thyristor controlled and connected on line voltage in four zones. In order to produce an optimal airflow, the furnace roof is built at a 45° angle above the cassettes and baffles guide the flow. The cassettes are mounted underneath and can be removed easily by lifting. The electrical connections are assembled in the space above the roof and consequently not subjected to direct heat.
THE RESULT
Kanthal® air heating cassettes are designed for maintenance-free operation over several years with no need for element replacements. In the extent of an element failure or broken ceramic tube, the whole cassette can be removed easily for repair, while a spare cassette is installed. At Hydro Aluminium Holmestrand, all expectations have been met fully and the large 5460 kW pusher furnace is running continuously and in accordance with production plans.
