The production volume is about 35 tons/day and the plant is operated on a continuous base 24 hours per day, at present for ﬁ ve days per week. Most of the customers are found in the automotive industry all over Spain. The process control of the furnaces is completely computerised and monitored from a central unit. This contributes to a very high efﬁciency and quality and less need of manpower. The total number of employees is about 30.
One of the ﬁrst furnaces installed was a salt bath furnace for nitrating and carbonitriding, with limited production capacity and an old process control system. The furnace did not meet the demands of Badia any longer and a decision was made to replace this furnace with a completely new integrated hardening line. Badia have used Kanthal® Super electric heating elements in their sealed quench furnaces directly in the furnace atmosphere for many years with very good experiences, and would prefer to have the new line heated in the same way. The lifetime of the elements was in average 4–6 years, and the high power resulted in a very short recovery time after charging and consequently a high and reliable production. A similar performance was expected for the new line as the atmosphere and
temperature would be the same.

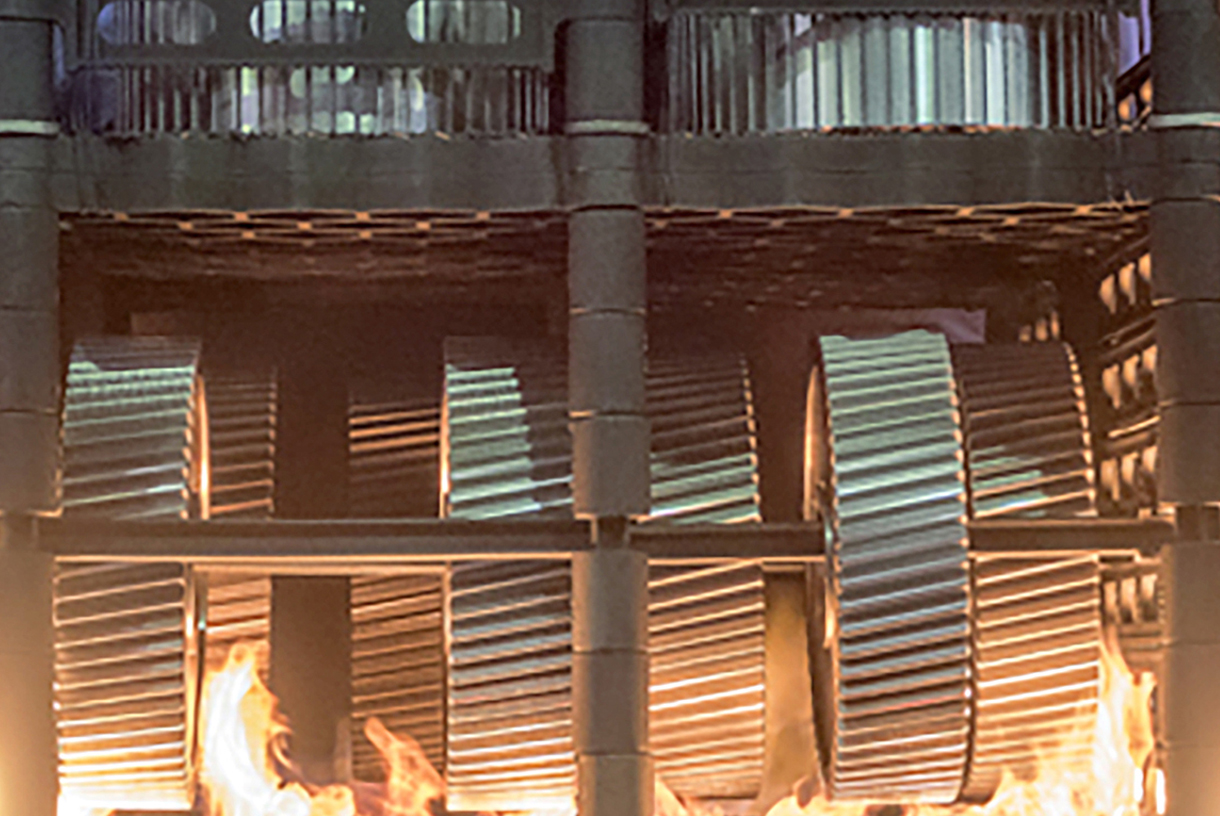

The new line was designed and built by the Italian furnace builder Cieffe. It consists of a high temperature furnace for carbonizing and carbonitriding, a quenching unit, cleaning and tempering.
The total power is 240 kW with 48 Kanthal® Super MoSi2 heating elements. The elements are powered by a transformer and connect four elements in series in three groups per phase. The maximum temperature is 940°C (1720°F), although the process run by Badia normally requires 900–920°C (1650–1690°F). Each element is of the 1700 type, with a heating zone length of 670 mm (26.4 in), rated between 4177–5842 W. Zone 1 and 4 are using 12/24 and zone 2 and 3 6/12 elements. (Dimension in mm of the heating zone diameter/terminal diameter.) The furnace is equipped with a mufﬂ e and the elements are installed vertically from the roof between the lining and the mufﬂe.
The atmosphere is an endothermic mixture of natural gas, N2, methanol, cracked ammonia, CO and air. The carbon potential is 1.0–1.1%.
Kanthal® Super are the only electric elements that can be operated directly in the furnace atmosphere without using any protection tubes.
The new line is easily controlled through the whole production process. This is due to four separately controlled zones in the new line.
