Superthal® Mini heating modules
Superthal® Mini is a complete compact heater ready to connect to the power supply. This product is used in melting and processing for the dental and medical industry and general material research and development. It is easy to control and can be rapidly heated up and cooled with a uniform temperature profile.
Information
The standard inner diameter is 26 or 31 mm (1 or 1.2 in), and the maximum element temperature 1550°C (2820°F), which corresponds to a furnace temperature of around 1500°C (2730°F).
Superthal® Mini is made of a Kanthal® Super molybdenum disilicide (MoSi2 ) heating element and an insulation high grade ceramic fiber. The stainless steel casing protects the heater and the electric contacts.
Characteristics
SPECIFICATIONS

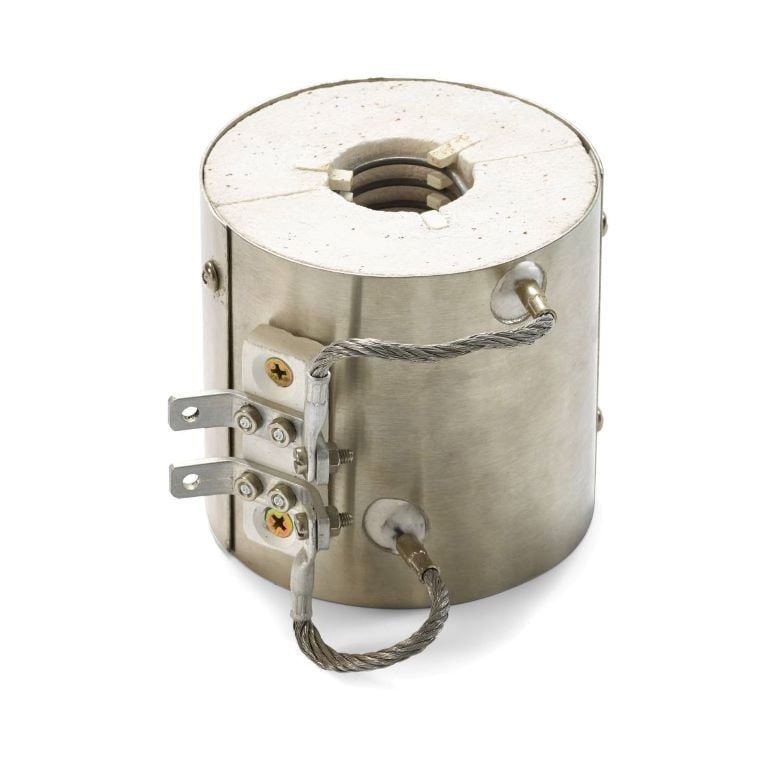

Superthal® Mini consists of a Kanthal® Super MoSi2 heating element, ceramic fiber with element supports and a stainless steel casing also protecting the electric contacts. It is ready to be connected to the power supply. The lifetime exceeds 3000 cycles to 1500°C (2730°F). Special dimensions can be manufactured on request.
| Element type: Kanthal® Super Special | ||
| Inner diameter | 26 or 31 mm | (1 or 1.2 in) |
| Outer diameter | 100 mm | (3.9 in) |
| Height | 115 mm | (4.5 in) |
| Element temperature | up to 1550°C | (2820°F) |
| MS 26 | ||
| Power | 300 W at 1500°C | (2730°F) |
| Voltage | 19 V | |
| Current | 16 A |
| MS 31 | ||
| Power | 400 W at 1500°C | (2730°F) |
| Voltage | 24 V | |
| Current | 17 A |
